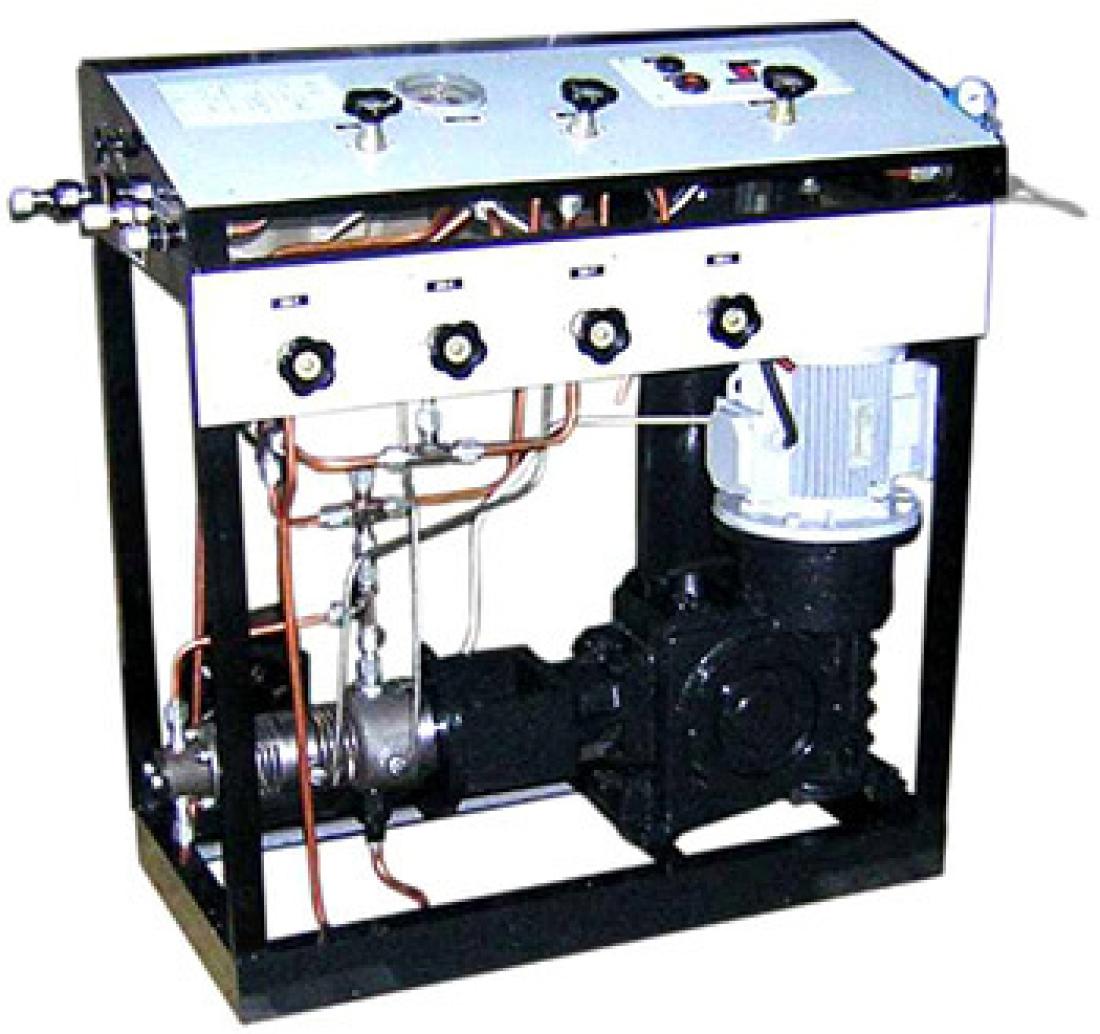

AGT 24AUHL
Filling unit AGT 24AEUHL is designed to fill cylinders or fire extinguishers with liquid CO2 or refrigerant 114B2, 227, 125HP by weight, followed by filling of halon cylinders with gas.
The unit has a control system which has manual or automatic mode of operation. When the desired filling weight is reached, the unit stops.
The unit uses an oil-free pump which excludes ingress of lubrication oil in cylinder.
The unit is supplied with:
- a non-corrosive spiral wrap hose, equipped with “quick connect” to attach cylinders of 20-40 l in accordance with GOST (Russian State Standard) 949-73;
- an electronic scale connected to the unit.
Connections for other types of cylinders and fire extinguishers, high pressure spiral wrap hoses and all necessary connections of the unit to a storage tank are available on request.
Also, we produce special filling unit AGT 24AUHLS on a by order.
| Operating environment: | |
| - refrigerant filling of fire extinguishers small and medium volume | halon 114B2, 227, 157HP |
| - CO2 filling of small and medium cylinders and fire extinguishers | Liquid CO2 |
| - gas filling of halon fire extinguishers | air or nitrogen |
| Working pressures: | |
| - refrigerant filling of fire extinguishers, MPa (kgf/cm²), no more | 0,5(5,0) |
| - CO2 filling of small and medium cylinders and fire extinguishers, MPa (kgf/cm²), no more | 7,5(75) |
| - gas filling of halon fire extinguishers, MPa (kgf/cm²), no more | 12,0(120) |
| Capacity of liquid CO2 filling, kg/hr, no less | 400 |
| Capacity of gas filling, l/min, no less | 3,8 |
| CO2 filling accuracy, % of filled cylinder weight, no more | 1 |
| Ambient air temperature, °C | -20...+40 |
| Power supply: | |
| - three-phase alternating current at frequency, Hz | 50 |
| - voltage, V | 380 |
| - Power consumption, kW | 3 |
| Dimensions, mm | 920х450х1017(h) |
| Weight, kg | 190 |
| Lifetime, years | 15 |
