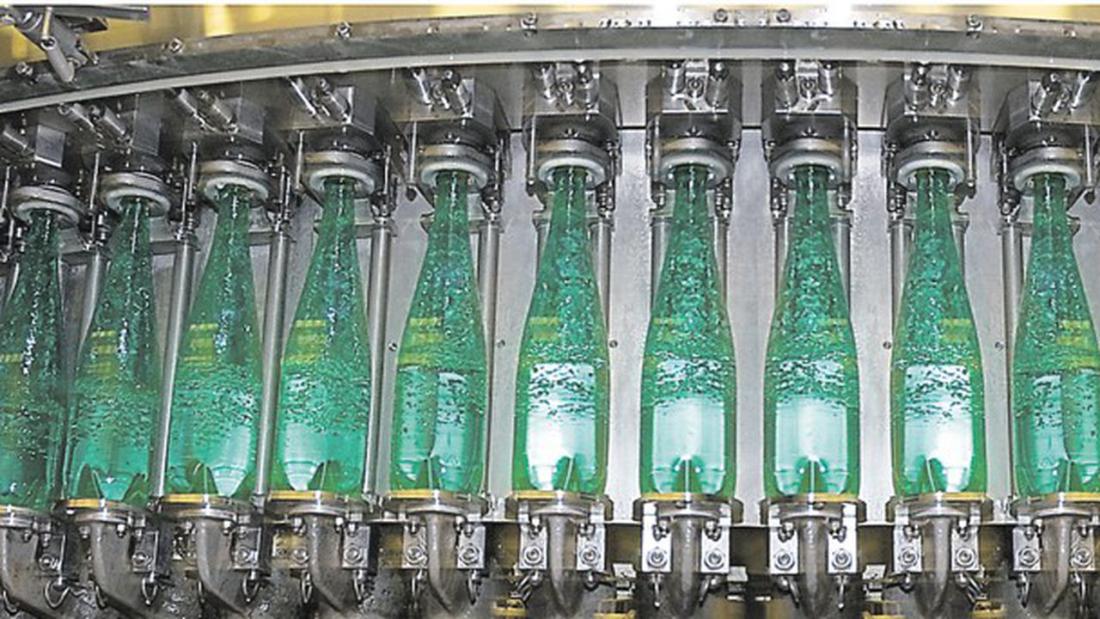

CO2 Systems for Carbonation of Beverages

Our CO2 systems are used to deliver, store, and gasify and feed carbon dioxide into the filling line of soft drinks and beer.

Advantages:

• the use of new technology increases operational efficiency;
• reduction of maintenance cost;
• automatic control ensures minimum manual intervention;
• high quality and reliability;
• low wholesale price of CO2 increases profitability of production.

Depending on quantity of consumable CO2 we offer different types of CO2 systems with CO2 delivery rate up to 100 kg/hr, 200 kg/hr, 400 kg/hr, 1200 and more kg/hr.

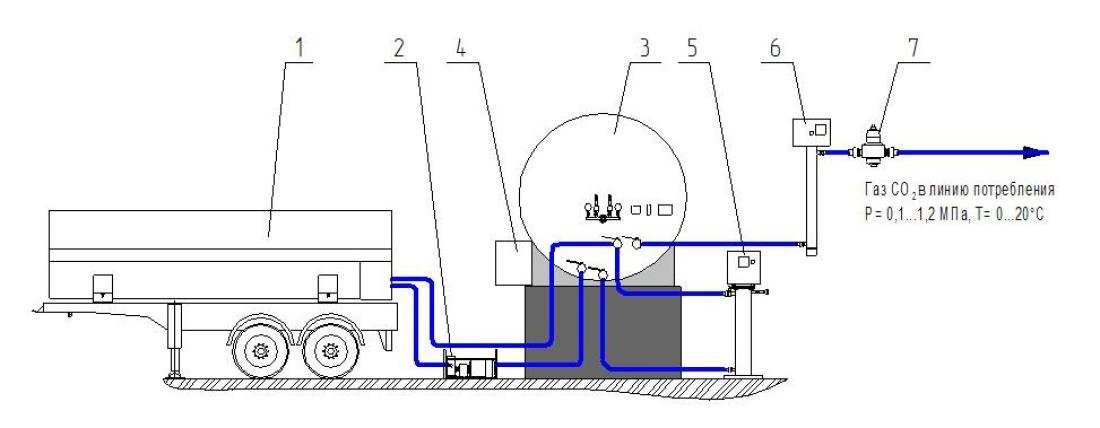

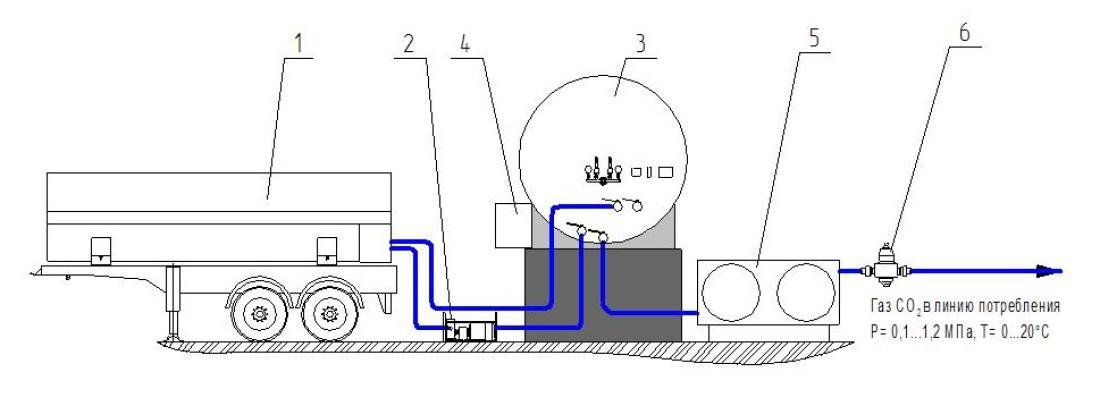

Our systems include:

1. CO2 transportation tanks RKhTU-4,0-1,8; TsZhU-10-2,0; TsZhU-18-2,0; TsZhU-22-2,2.
2. CO2 transfer pump with capacity 10 t/hr AGT 141-01.
3. Horizontal and vertical iquid CO2 storage tanks RDKh-10,0-2,0; RDKh-12,5-2,0; RDKh-22,5-2,0; RDKh-30,0-2,0; RDKh-40,0-2,0; RDKh-50,0-2,0.
4. Electric vaporizers with capacity of 100 to 1200 kg/hr.
5. Electric preheaters with capacity of 400 to 1000 kg/hr.
6. CO2 reducing units with pressure range at outlet of 1...8 kgf/cm2, 2...12 kgf/cm2.

We also offer a system with capacity of 30 kg/hr for small CO2 consumers.

The equipment has a hygienic certificate of compliance with food-grade standards.

Lifetime is 15 years.
