CO2 Supplementation Systems For Plants

There is a growing interest of greenhouses towards carbon dioxide supplementation of plants. As a result, we appeared to have the increased number of orders comings from greenhouses, too. We offer CO2 supplementation systems of different capacities.

Advantages of the equipment:

• it helps to increase the crop;
• it contributes to plants illness resistance;
• the use of new technology increases hothouse efficiency;
• reduction of maintenance cost;
• full automatic control minimizes manual intervention;
• high quality and reliability;
• low wholesale price of CO2 increases profitability of production.

Our CO2 systems are used to deliver, store, gasify and withdraw pre-heated carbon dioxide for its consumption.

Depending on quantity of consumable CO2 we offer different types of CO2 systems with CO2 delivery rate up to 100 kg/hr, 200 kg/hr, 400 kg/hr, 1200 and more kg/hr.

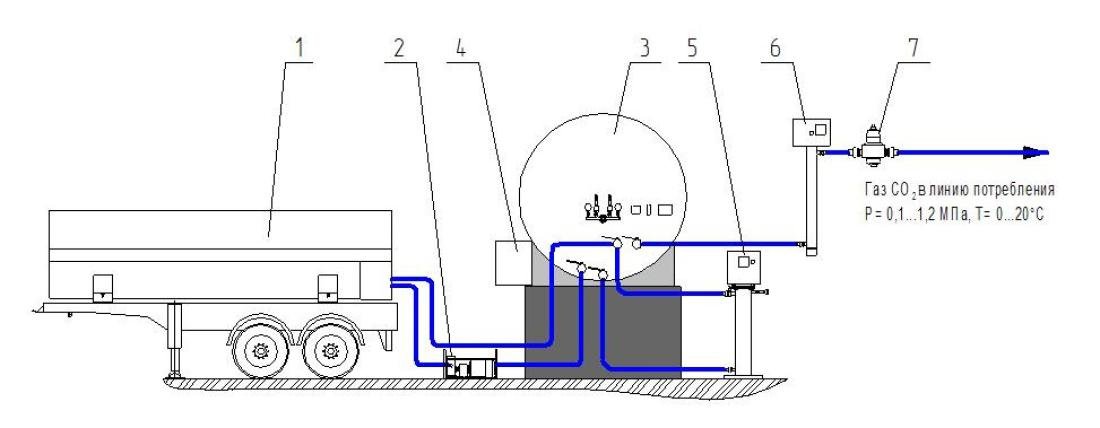

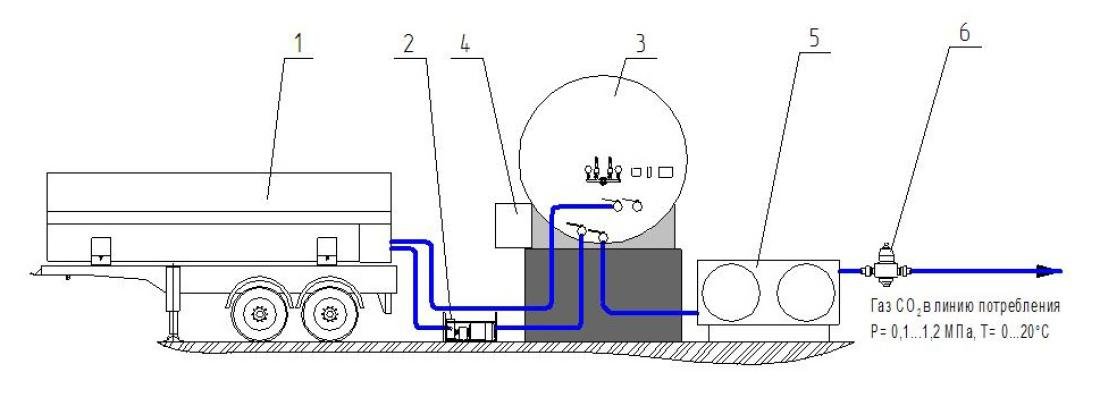

Our systems include:

1. CO2 transportation tanks RKhTU-4,0-1,8; TsZhU-10-2,0; TsZhU-18-2,0; TsZhU-22-2,2.
2. CO2 transfer pump with capacity 10 t/hr AGT 141-01.
3. Liquid CO2 storage tanks RDKh-10,0-2,0; RDKh-12,5-2,0; RDKh-22,5-2,0; RDKh-30,0-2,0; RDKh-40,0-2,0; RDKh-50,0-2,0.
4. Electric vaporizers with capacity of 100 to 1200 kg/hr.
5. Electric preheaters with capacity of 400 to 1000 kg/hr.
6. CO2 reducing units with pressure range at the outlet of 1...8 kgf/cm2.

The system can be customized with higher capacity equipment upon your request.

Lifetime is 15 years.
