The structure of our typical stations for filling cylinders and fire extinguishers liquid CO2 includes following equipment:

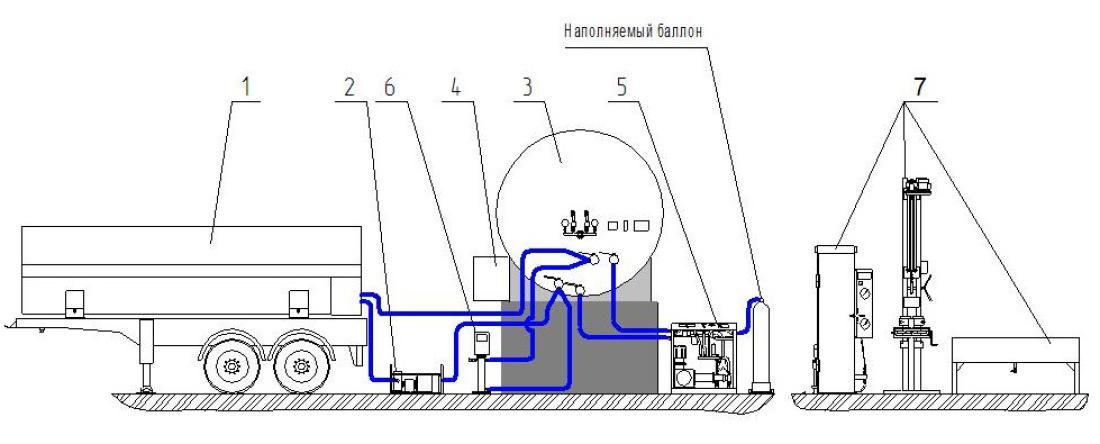

VARIANT 1
- CO2 transportation tanks of 4 to 22 m3 RKhTU-4,0-1,8; TsZhU-10-2,0; TsZhU-18-2,0; TsZhU-22-2,2;
- Static CO2 storage tanks of 4 to 50 m3 RDKh-10,0-2,0; RDKh-12,5-2,0; RDKh-22,5-2,0; RDKh-30,0-2,0; RDKh-40,0-2,0; RDKh-50,0-2,0;
- Refrigeration system to maintain pressure AGT-26F;
- CO2 transfer pump with capacity of 10 t/hr AGT 141-01;
- Pressure maintenance unit AGT 220;
- CO2 Cylinder Filling Unit AGT 24A (productivity of filling not less than 90 cylinders (40l) in shift).
- Technical examination system for cylinders and fire extinguishers AGT 145-02; AGT 145-04
Filling of cylinders directly from the transport tank then at acceptance of this variant, we offer following equipment are possible:

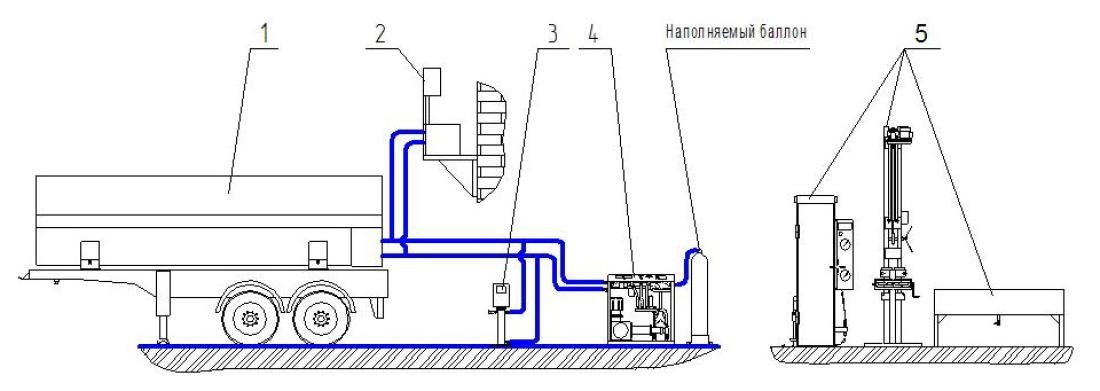

VARIANT 2
- CO2 transportation tanks of 4 to 22 m3 RKhTU-4,0-1,8; TsZhU-10-2,0; TsZhU-18-2,0; TsZhU-22-2,2;
- Refrigeration system to maintain pressure AGT 26-2,5 (in exchange AGT-26F for RDKH);
- Pressure maintenance unit AGT 220;
- CO2 Cylinder Filling Unit AGT 24A.
The system is intended for performance of the operations spent at technical examination of cylinders (GOST 949-73 Russian State Standard) by capacity to 50 litres and pressure to 200 kgf/cm2
Distinctive feature of the system are:
- The technical decisions directed on safety at technical examination;
- Convenience and simplicity of service;
- Universality.
In Technical Inspection of Russian Federation the System of technical examination of cylinders and fire extinguishers is not subject to registration.
This complex will represent difficult enough pneumatic hydraulic system. We suggest to execute a technological part of the project «Modernization of station filling cylinders by liquid СО2 and system of technical examination of cylinders and fire extinguishers»
